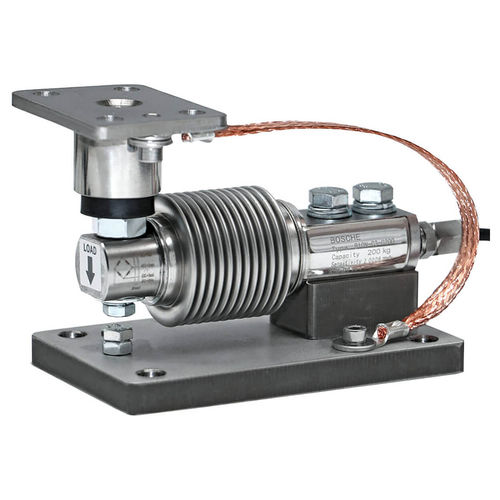

Hermetically-sealed weigh module B10-MB

stainless steelfor tankfor hopper

The loadblock B10-MB was specially developed for B10N and B10S bending beam load cells. Due to the introduction of the force with an elastomer, the optimal introduction of the load is guaranteed. The base and bottom plate is made of stainless steel. The elastomer bearing provides compensation for misalignments, shock loads and light vibrations. At the same time, it is self-centring via elastomer restoring forces. Optionally, B10N load cells, made of non-corrosive steel or the BS10 made of alloyed steel, can be mounted. Weighing of small and medium containers, mixers and tanks. For dispensing and bagging scales as well as packaging machines in the process industry. Features Ideal for hopper or tank weighing applications Material: Stainless steel or alloyed steel Nominal load: 5 kg - 250 kg Load cell hermetically sealed Particularly robust for long-term use in industrial applications Easy installation Low construction height Limited tilt protection
