Weight measuring system Linecube®

volumedimensionallaser

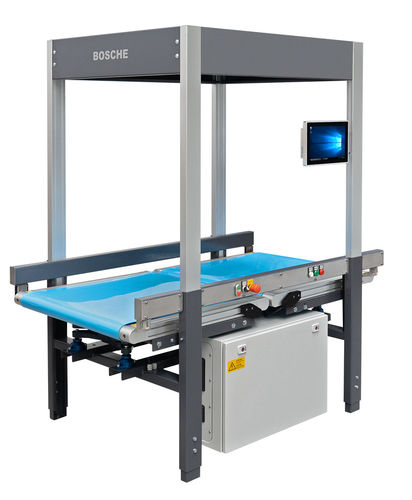

Dynamic measurement of freight The Linecube® volume and weight measuring system is used to determine the weight and dimensions of packages. A high quality line laser ensures exact parameterisation. While it scans the packages and determines the volume, they are simultaneously weighed and the resulting volume weight is calculated from these values. This data (L x W x H) simplifies transport planning and improves the use of space in transport vehicles. Simultane- ously, packaging, storage and shipping planning can be optimised. Conveyor belts with integrated scales, which have a speed of up to 0.8 m/s, are used as a transportation means. This makes the measuring and weighing process simple and efficient. It is ideal for companies with medium and high shipping volumes. Optionally, each package can be documented by photo. Features Weighing and measuring in a single process Non-contact volume detection by line laser Quick and accurate weight determination Integrated bar code reading system Obtains dimensional and weight data for calculating the volumetric weight Two conveyor belts with weighing function and adjustable transport speed up to 0.8 m/s Weighing range up to 100 kg with a graduation of 20 g Direct transfer of data to a PC with a visualisation of objects Optimising shipping and packaging planning
