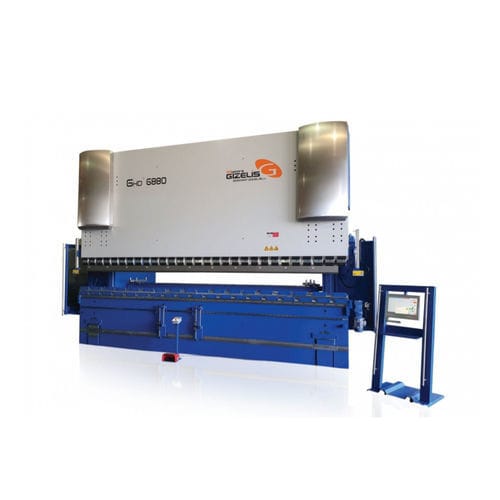

Hydraulic press brake G Flex seriesCNC
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Control
- CNC
- Press force
Min.: 80 tf
Max.: 210 tf
- Folding length
2,100 mm, 3,100 mm
(82.7 in, 122 in)
Description
Distance between uprights - 1550 - 2550 - 3100 - 3100 - 3100 - 4100 - 4100
Throat depth - 400 - 400 - 400 - 400 - 400 - 400 - 400
Daylight - 515 - 515 - 515 - 515 - 515 - 515 - 515
Punch stroke - 250 - 250 - 250 - 250 - 250 - 250 - 250
Table width - 80 - 80 - 80 - 80 - 114 - 80 - 114
Fast speed - 0-180 - 0-180 - 0-180 - 0-160 - 0-160 - 0-180 - 0-160
Working speed* - 0-20 - 0-20 - 0-20 - 0-20 - 0-20 - 0-15 - 0-15
Upstroke speed - 0-160 - 0-160 - 0-160 - 0-140 - 0-130 - 0-160 - 0-130
Hydraulic pressure - 275 - 275 - 275 - 275 - 275 - 275 - 275
Length - 3000 - 4000 - 4000 - 4000 - 4000 - 5000 - 5000
Width - 1700 - 1700 - 1800 - 1850 - 1900 - 1850 - 1900
Weight - 6000 - 8500 - 10000 - 11200 - 13200 - 12400 - 14500
