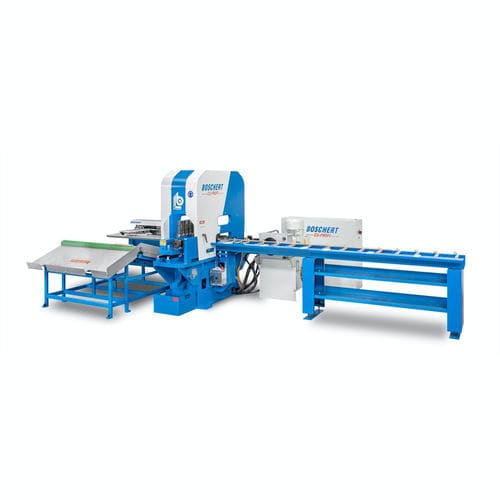

CNC punching machine CuProfihydraulicpneumaticturret
Add to favorites
Compare this product
Characteristics
- Control
- CNC
- Drive type
- hydraulic, pneumatic
- Other characteristics
- turret
- Pressing force
400 kN
- Engine power
11 kW
(14.96 hp)- Plate thickness
Max.: 15 mm
(0.59 in)Min.: 3 mm
(0.12 in)
Description
Maximum dimensions of work piece
Length 4000 mm (Option 6000 mm)
Width 15-200 mm
Speeds
Max axis 100+60 m/min
Max. stroke per minute 180
Tooling
Number of tool stations 5-8
Max. Number of punching tools 8
Special length thick turret tooling Max. Diameter 31,7 mm
Axes accuracy during punching process
Positioning Accuracy + - 0,10 mm
Repeatability + - 0,05 mm
Space requirement and weights
Length 7000 mm (9000 mm)
Width 3000 mm
Height 2100 mm
Weight 4000 kg
Electrical values
Electrical connecting value 25 kVA
Required fuse 3 x 35 A
Pneumatic connecting value 4 bar
Catalogs
CuProfi
6 Pages
