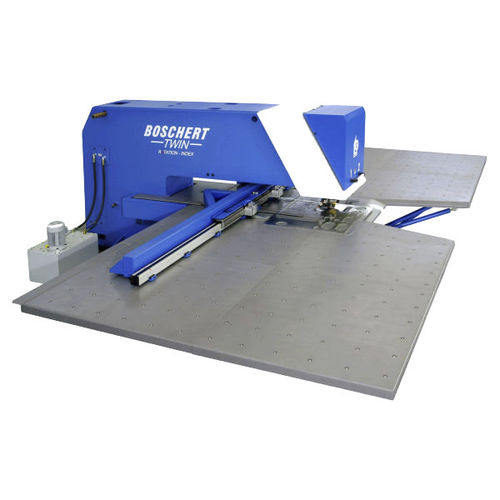

Automatic punching machine TWIN / TRI

hydraulicfor sheet metalpunching

The TWIN/TRI series machines are equipped, respectively with two or three independent punch heads. Either series can be equipped with Revotool, Boschert‘s multi-tool solution. Up to 16 tools in the TWIN series and up to 24 tools in the TRI series allow the working of complex parts without tool change. A distinct advantage of all Boschert CNC punching machines is the user-friendly software. The heavy-duty, open C-frame design allows turning of oversized sheets. The powerful software suggests op-tions for automatic repositioning and turning/flipping of large parts Frame Solid welded steel construction designed using elemtental analysis tools guarantees the highest stability for punching sheets up to 12,7mm thick. Robust construstion Widely spaced ball screw and linear guides guarantee positioning accuracy and repeatability. Control panel 10,5“ TFT colour screen, ergonomically designed, it is adjustable and mounted on casters. Floppy disk drive, dual palm buttons, tool change position button, emergency-off. The powerful graphic and conversational software guarantees simple and fast programming. It is also available in a PC version. Rotation Index One of the heads in either series machine can be equipped with full 360 stepless rotation of all tools up to 105mm in diameter. Designed especially for rotation machines, a 7-position Revotool includes a 5mm x 30mm parting tool thus allowing contouring, shaker parts, etc. In addition to the slitting tool, 6 posi-tions with a maximum diameter of 16 mm are accommodated.
