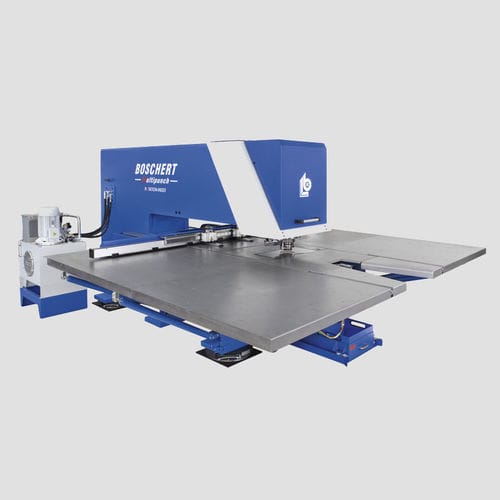

CNC punching machine Multipunch series

hydraulicfor sheet metaltapping

More components of the Multipunch a The automatic tool lubrication serves to increase tool life when nibbling stainless steel (VA) and decreases edge burrs in aluminium b Repositioning up to 10 meters and clamp movement without contacting the sheet. 2 robust clamps for sheets up to 200 kg (expandable to 4 clamps). Standard capaci- tiy up to 7 mm or 12,7 mm when required. (Standard) c Sandblasted, corrosion resistant surface as standard. Balls in the table for heavier sheets and easy handling, brushes in the table for thin or scratch sensitive sheets are also available. d Vacuum slug removal e CNC/CAD software to import DXF-files into machine language, calculated punch time, graphic simulation f Nibbling up to 800 strokes / min with integrated oil cooling g Programmable repositioning of the clamps for faster set up of the machine. (Standard) h Tapping and drilling attachment for threads M3 up to M12 and smaller drilled holes in thicker sheets. i Marking apparatus for marking parts in 10 different fonts. Boschert Multipunch Auto Tool Change Rotation Index Tooling Tool Changer The Multipunch tool carrousel is mounted at the front of the machine, below table level. The vertical and horizontal axis movements are controlled by ball screws with linear ball guides using double carriages. The rotary axis positions the eight cassettes with a rack and pinion drive. The Multipunch uses Trumpf style tools up to size II (3”) and Boschert Revotools. It is possible to have up to 64 individual tools, all fully indexable, in the machine Rotation Index 360 degree stepless rotation of all tools, including Revotools. Maximum diameter of tools is 76.2 mm
