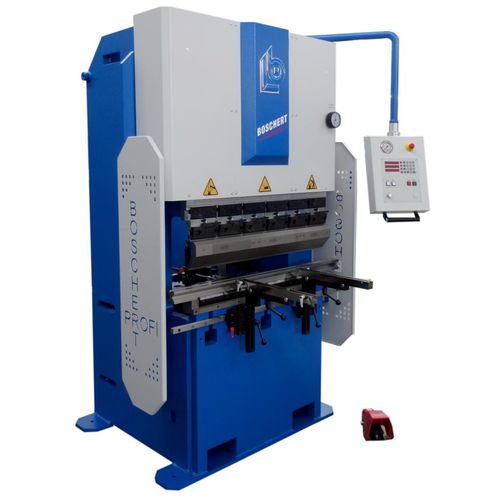

Hydraulic press brake PROFIBEND 28

CNCNCconventional

The BOSCHERT Profi Bend 28 NC and Profi Bend 28 CNC are precision hydraulic press brakes. The extremely compact and robust structure of these machines and the twin guides guarantee ram repeatability of 0.02mm. The Profi are designed to manufacture small parts and perfectly compliment your existing larger machines. By forming small parts on the Profi and larger parts your existing machines, plant productivity is greatly Standard tooling is Amada style, with other systems available on request. Material stops are adjustable vertically and horizontally and have stop fingers with two faces each. With a maximum bending force of 28 tons, typical work could include parts up to 300mm long and 10mm thick. The Profi Bend 28 NC is simple to operate. The ram can be adjusted under pressure by using the handwheel. The powered back gauge is programmable with up to 99 programs of 30 lines each.
