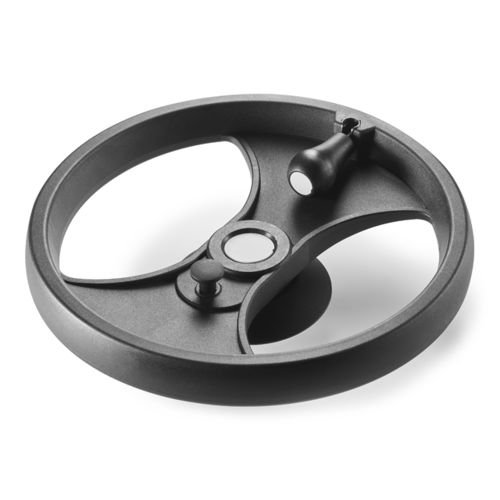

Control handwheel D601

spokedswing-handleplastic

Materials: Reinforced and stabilised polyamide. Oils and greases resistant. Surface: Satin. Colour: Black (RAL 9011). Central cap: Grey polyamide cap (RAL 7035 cod. 13). Alternative cap colours: Orange (RAL 2004 cod. 02). Blue (RAL 5015 cod. 07). Yellow (RAL 1021 cod. 10). Red (RAL 3000 cod. 16). Green (RAL 6024 cod. 17). Black ( RAL 9011 cod. 01). Locking Piston Kit: (1) PA6+GF hole cover ring. Black (RAL 9011). Push-fit assembly. Removable. (2) PA6+GF piston holder. Black (RAL 9011). Assembly with two self-tapping, galvanised steel screws, screwdriver head 3.5x30. (3) PA6+GF gear stick d. 26 with M4 brass female threaded insert and positioning brackets. Black (RAL 9011). (5) PA6+GF gear stick support with positioner. Black (RAL 9011). (6) Zinc plated steel return spring. (7) Zinc plated steel washer (8) Zinc plated steel locking piston. Seat for Allen wrench no. 5 for fastening. Piston stroke 10 mm. Useful projection from handwheel 8 mm. Inserts: Zinc plated steel insert with smooth through-bore, with H10 tolerance. (4) Black-oxide treated hexagon socket button head screw ISO 7838 for fastening handle. Side handle: Flush, foldaway revolving handle, with hexagonal connection. Made from reinforced polyamide (shape same as art. M202). Black-oxide treated internal mechanism. Fixing by means of black-oxide treated hexagon socket button head screw ISO 7838. Grey polyamide push fit cap (RAL 7035 code 13). Fixing: For fixing system, or execution of keyway or square holes, please refer to the technical notes attached to the catalogue.
