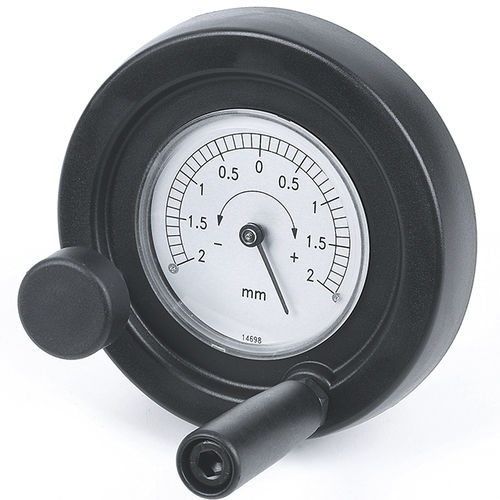

Control handwheel K903

solidwith indicatorswing-handle

Materials: Reinforced and stabilised polyamide. Oils and greases resistant. Surface: Satin. Colour: Black (RAL 9011). Inserts: Zinc plated steel insert with right through smooth bore, (bore tolerance H10). Mountable indicator Use gravity indicators models K650 or K660. The indicator can only be used in a vertical position (horizontal machine axis). The indicator and its fixing grub screw (d7) are to be purchased separately. For further information on the indicators, see the pages relating to articles K650 and K650. (*) With the adapter KS08050.T01 you can mount the indicator K650080. Lateral insert: Brass threaded right trough bored insert. Side handle: Revolving handle article M144. Locking knob: Cylindrical handwheel G793-36 with threaded stud]. Black (RAL 9011). ATTENTION: the dimension Q2 of the tightening handwheel must be chosen by the customer based on the dimensions of the machinery on which the handwheel is applied. For the K903-130 model the tightening handwheel is replaced with the wing nut L751-32. Fixing: For fixing system, or execution of keyway or square holes, please refer to the technical notes attached to the catalogue. SPECIAL REQUESTS: On request and with a minimum of 50 pieces, the inserts can be supplied with hole d1 with tolerance H7 and black-oxyde finish. Add the letters ZB to the standard code. Example: K903100.T050D1001PZB. It’s possible to supply the inserts with d1 bore by customer design, on request and for quantities. It’s possible to supply the inserts in different material and treatment-finishes, on request and for quantities. Indicator to be ordered separately. Upon request and for quantities the indicator seat can be adjusted.
