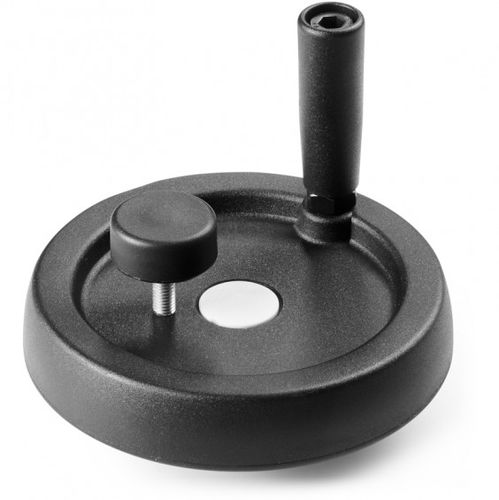

Control handwheel C970solidswing-handlepolyamide
Add to favorites
Compare this product
Characteristics
- Function
- control
- Configuration
- solid, swing-handle
- Material
- polyamide
- Outside diameter
Min.: 100 mm
(3.94 in)Max.: 249 mm
(9.8 in)- Bore size
Min.: 30 mm
(1.18 in)Max.: 59 mm
(2.32 in)
Description
Materials:
Reinforced and stabilised polyamide. Oils and greases resistant.
Surface:
Satin.
Handwheel and handle colour:
Black (RAL 9011).
Central cap:
Grey polyamide cap (RAL 7035 cod. 13).
Main insert:
Zinc plated steel insert with right through smooth bore, (bore tolerance H10).
Lateral insert:
Brass insert with threaded right through bore.
Side handle:
Revolving handle art. M144 [FAM_M144.
Locking knob:
Cylindrical knob black Ral 9011 art. G793-36 with thread stud [pageFAM_G793. Caution: the R and Q2 dimensions of the knob must be chosen by the customer according to the dimensions of the machinery on which it will be installed.
Fixing:
For fixing system, or execution of keyway or square holes, please refer to the technical notes attached to the catalogue.
SPECIAL REQUESTS:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish. Add the letters ZB to the standard code. Example: C970125.TD1001PZB.
It’s possible to supply the inserts with d1 bore by customer design, on request and for quantities.
It’s possible to supply the inserts in different material and treatment-finishes, on request and for quantities.
