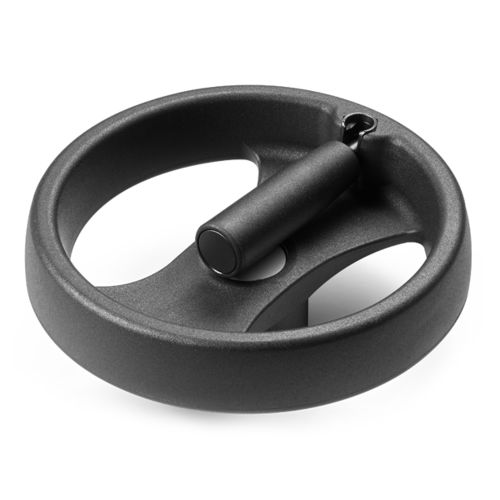

Control handwheel D207200
spokedswing-handleplastic

control handwheel
control handwheel
control handwheel
control handwheel
Add to favorites
Compare this product


Characteristics

Function
control
Configuration
spoked, swing-handle
Material
plastic
Outside diameter

200 mm
(7.87 in)

Bore size

54 mm
(2.13 in)

Description

MATERIAL: Reinforced and stabilised polyamide. Oils and greases resistant. SURFACE: Satin. COLOUR: Black (RAL 9011). CENTRAL CAP: Grey polyamide (RAL 7035 cod. 13). ALTERNATIVE CAP COLOUR: Orange (RAL 2004 cod. 02) Blue (RAL 5015 cod. 07) Yellow (RAL 1021 cod. 10) Red (RAL 3000 cod. 16) Green (RAL 6024 cod. 17) Black (RAL 9011 cod. 01) Main insert: Zinc plated steel insert with right through smooth bore, (bore tolerance H10). Side handle: Flush, foldaway revolving handle, with hexagonal connection. Reinforced polyamide. Black-oxide treated internal mechanism. Fixed with black-oxide treated hexagon socket button head screw ISO 7838. Hub: Solid hub. Fixing: For fixing system, or execution of keyway or square holes, please refer to the technical notes attached to the catalogue.
