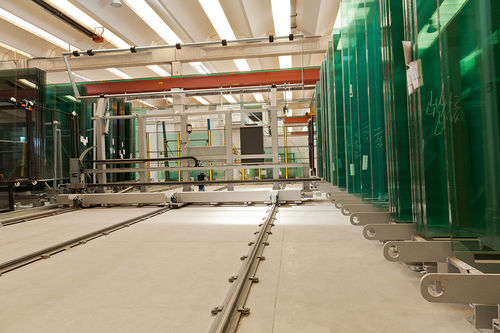

Shuttle storage system 650

Ideal system for the management and storage of different types of glass and for restricted height buildings that are not suitable to accommodate overhead type loaders. The ultimate solution to manage an unlimited number of racks feeding an unlimited number of cutting lines. A single loading area located in close proximity to the main glass delivery entrance guarantees more safety, reduced glass handling movements and no production downtime. Furthermore all components requiring servicing are easily accessible from floor level, providing a safe and speedy intervention, and production is maintained during routine maintenance work. 650 shuttle moves at a speed of 40 m/min and can handle glass sheets up to 12500 kg. It is available in single sided or double sided versions. Double sided version is suitable to deliver glass sheets to two cutting lines with a single loader and a dual line with a double sided loader. Technical specifications Max glass size 6100 x 3300 mm 3650 x 2750 mm Max weigth 6000 ÷ 9000 kg 10000 ÷ 12500 kg 5000 ÷ 6300 kg Max speed 40 m/min Rack depth 190 ÷ 250 mm 320 ÷ 400 mm
