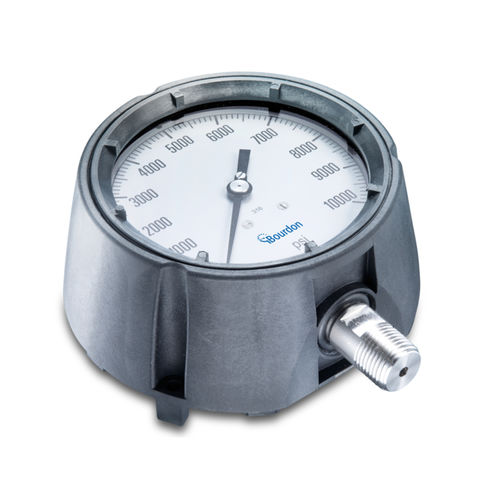

Absolute pressure gauge MPG6dialthreadedstainless steel
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Display
- dial
- Mounting
- threaded
- Material
- stainless steel, aluminum
- Protection level
- IP67
- Applications
- for vacuum
- Pressure
Min.: 0 bar
(0 psi)Max.: 1,600 bar
(23,206.04 psi)- Dial diameter
115 mm
(4.5 in)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 200 °C
(392 °F)
Description
For corrosive gasses and liquids
Grade 2A (ASME B40.1)
Solid front gauge
Wetted parts: Stainless steel
Case material: Polypropylene
Option: Liquid-filled for applications with pulsations or vibrations
Weight
Gauge
680 g unfilled
1300 g filled
