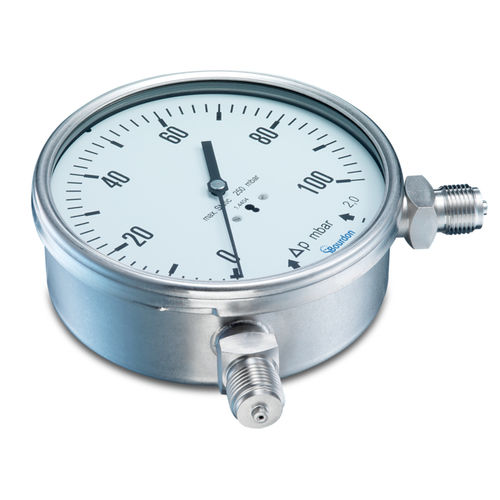

Differential pressure gauge MCD7dialthreadedNPT 1/2
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Display
- dial
- Mounting
- threaded
- Process connection
- NPT 1/2, G 1/2
- Material
- stainless steel, brass, aluminum, glass
- Technology
- capsule
- Protection level
- IP66
- Applications
- for gas
- Other characteristics
- low-pressure
- Pressure
Min.: 0 mbar
(0 psi)Max.: 250 mbar
(3.63 psi)- Precision
2 %
- Dial diameter
150 mm
(5.9 in)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 70 °C
(158 °F)
Description
Zero adjustment
± 10 % FS
Adjustment screw accessible on the front side after removing of bezel ring and window
Manifolds
3-way manifolds are recommended to ensure to apply the pressure simultaneously on both sides and avoid single-sided overload.
Working principle
The HP is applied inside the capsule and the LP outside the capsule (in the case). The deflection of the capsule results from the difference between the pressure inside (HP) and outside (LP)
Weight
Gauge
900 g
