Diaphragm pressure switch RDN4
differentialterminal blockstainless steel

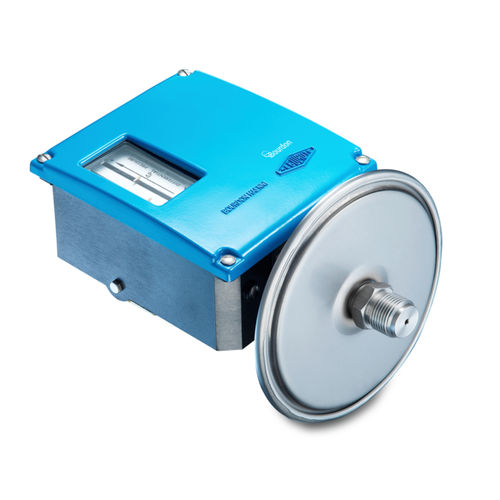

Diaphragm pressure switch - RDN4 - Bourdon - differential / terminal block / stainless steel
Diaphragm pressure switch - RDN4 - Bourdon - differential / terminal block / stainless steel
Diaphragm pressure switch - RDN4 - Bourdon - differential / terminal block / stainless steel - image - 2
Diaphragm pressure switch - RDN4 - Bourdon - differential / terminal block / stainless steel - image - 3
Diaphragm pressure switch - RDN4 - Bourdon - differential / terminal block / stainless steel - image - 4
Diaphragm pressure switch - RDN4 - Bourdon - differential / terminal block / stainless steel - image - 5
Diaphragm pressure switch - RDN4 - Bourdon - differential / terminal block / stainless steel - image - 6
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Pressure type
differential
Electrical connection
terminal block
Material
stainless steel
Protection level
IP66
Pressure range

Max.: 400 mbar
(5.8 psi)

Min.: -2.5 mbar
(-0.04 psi)

Process temperature

Max.: 150 °C
(302 °F)

Min.: -40 °C
(-40 °F)

Description

Excellent repeatability Dead band adjustment for regulation Fix dead band for control and alarm Housing Cover Blue painted, zamak Captive stainless steel screws Case material Black painted, zamak Scale Internal, accuracy on reading ± 5 % FS Performance Repeatability ± 1 % FS Adjustment 2 external adjustment screws on top of the case for set point and deadband When set point adjustment is required it is necessary to know the static pressure, as it has an influence on the set poin Electrical data Ground connection Electrical connection Via internal terminal block with plastic cable gland for Ø 7 to 10.5 mm Approval / Conformities CE conformity Low Voltage Directive 2014/35/UE
