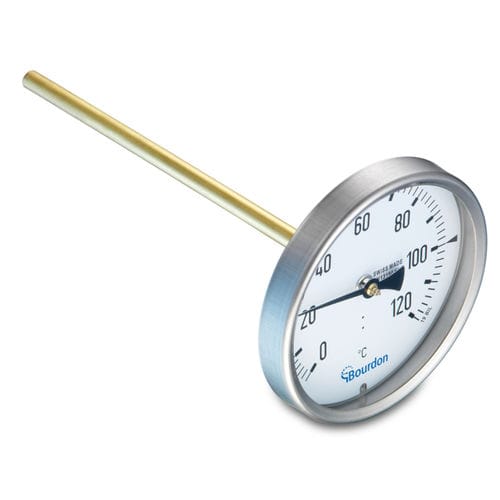

Bimetallic thermometer TB 080dial°Cstainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- bimetallic
- Display
- dial
- Units of measurement
- °C
- Other characteristics
- stainless steel, glass
- Temperature
Min.: -30 °C
(-22 °F)Max.: 500 °C
(932 °F)- Dial diameter
80 mm
(3.1 in)
Description
Multi-purpose standard thermometer
Class 1 according to EN 13190
Immersion tube brass (option stainless steel)
Immersion length 100 ... 1000 mm
Wetted parts
Immersion tube material
Brass
Option: Stainless steel 1.4571 / AISI 316Ti
Minimum immersion length
LE ≥ 50 mm
Performance
Accuracy according to EN 13190
up to 250 °C: class 1
above 250°C: class 2 (class 1 on request)
Weight
Thermometer
190 g bottom
140 g center back
