Spline test gauge SBM-Grooves

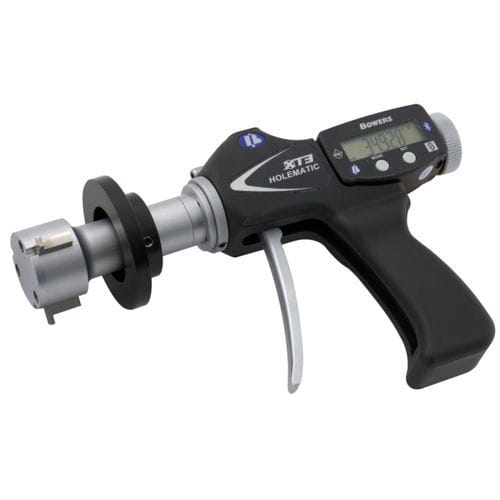

XT Grooves - The Best Way to Measure Internal Groove Diameters As the world’s leading bore gauge manufacturer, we offer a range of both standard and bespoke solutions for precision groove diameter measurement. Custom Groove Gauging If our generic groove anvil profile is not suitable for your application, please complete the Custom Groove Gauge Enquiry Form below and our team will design a bespoke head, perfectly tailored to fit your specific application. Our custom application heads can be fitted directly onto our XT range of internal micrometers to create a flexible, modular measuring system. Lead Times Custom groove gauge (blind bore, extreme travel, etc.) lead time = 2-4 weeks To accurately quote for a custom groove head, please send us an enquiry with the following dimensions included: • Entry diameter - minimum • Groove diameter - size and tolerance • Groove width - minimum • Groove corner radii - maximum See the diagram in the image carousel for a visual reference.
