Bore micrometer SXTA i series

digitalratchetpoint

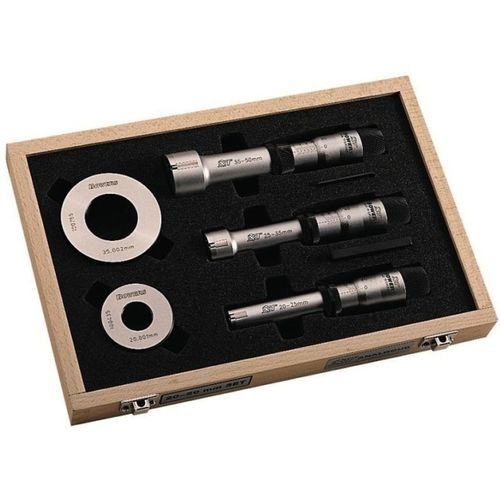

Bowers XT Analogue Bore Gauge - Sets - Imperial Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement. Product Description The extended mechanical travel of these advanced two or three point gauges ensures that exchanging measuring anvils is now unnecessary. Their wide application range, 2-300mm, rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads and setting rings are supplied with UKAS certification. Features • Range 2-300mm (0.080"-12") • 2-6mm 2 point / 6-300mm 3 point measurement • Graduation 2-6mm: 0.001mm, 6-300mm: 0.005mm • Tungsten carbide measuring faces on all 3-point heads from 12.5mm • Blind bore measurement from 2mm-6mm and above 12.5mm (0.500") • Extensions available above 6mm for deep hole measurement • Ratchet stop to ensure consistent measurement • Setting rings included with individual instruments and sets • UKAS certificates supplied as standard with all setting rings • UKAS certificate supplied as standard with all XT mechanical micrometers • Serial number on all gauges • Bore gauges manufactured according to DIN 863, part 4 • Supplied in fitted wooden case
