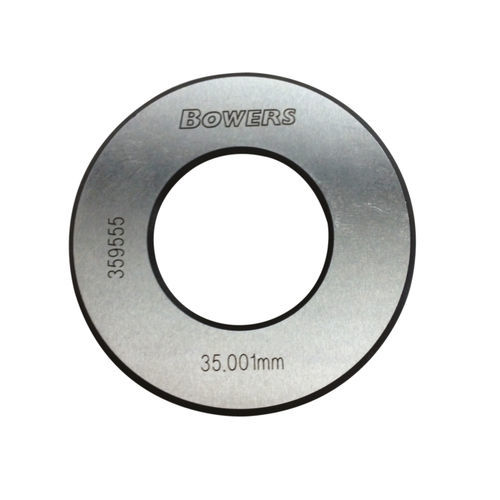

Ring gauge ULR series

Featuring the NEW Bowers ‘FASTFIT’ measuring heads with extended measuring range (above 14mm), the Ultima boasts a simple lever operation and a constant measuring force, ensuring outstanding ease of use and repeatability under laboratory or shop-floor conditions. Features • UKAS certificates standard for all setting rings • Measuring range 2-310mm (0.080"-12.000") • Resolution: 0.0001mm (0.00001") • Constant spring pressure for improved repeatability • Good positive feel as heads self-centre in the bore • Bowers 'Fastfit' measuring heads for rapid changeover • Ceramic anvils on heads above 12mm • Blind-bore measurement standard above 12mm • Possible to connect several probe holders to one single readout to measure different bore sizes at one measuring station • The complete range of Bowers special heads is available for the Ultima (grooves, threads, splines, deep-bores etc) • Depth stops available for all heads • Available without digital readout unit (if not required) • Interchangeable probe option, to allow use of other manufacturers probes and displays
