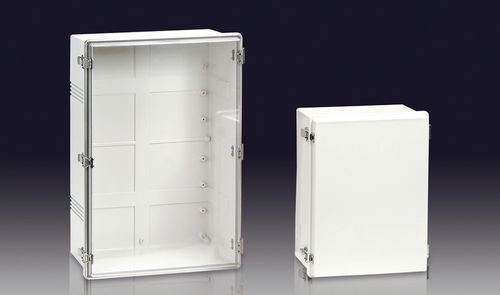

Large enclosure H serieswall-mountrectangularABS
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- ABS, polycarbonate
- Application
- industrial, for controllers
- Protection level
- waterproof, IK 08, IK 07, IP66, IP67
- Other characteristics
- with transparent cover, with hinged cover, large, medium-sized
- Width
Min.: 200 mm
(7.9 in)Max.: 600 mm
(23.6 in)- Height
Min.: 200 mm
(7.9 in)Max.: 600 mm
(23.6 in)- Depth
Min.: 120 mm
(4.72 in)Max.: 230 mm
(9.06 in)
Description
Medium and large size
1. BOXCO's non-metallic enclosures are not easy to break even high frequency of opening and closing because of stainless steel hinge and draw latch.
2. It is wall mounting enclosure and makes perfect airtightness, preventing sink down when opening or closing by using suitable size of hinge and draw latch in accordance with increasing of enclosure size.
3. Our control boxes can be used in inferior or dangerous industrial field by using strong material and structure.
Specification
IP rating : IP 66/67
IK Rating: IK 07/08
Temperature range: ABS : - 40 ~ + 70 | Polycarbonate(PC) : - 40 ~ + 110
Flammability Rating: ABS : 94-HB | Polycarbonate(PC) : 94-V-0, 5VA, HB
