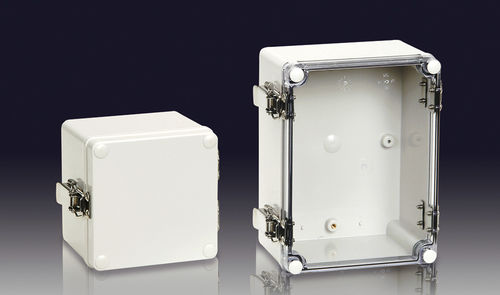

Wall-mount enclosure H seriessmall-sizerectangularABS
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount, small-size
- Configuration
- rectangular
- Material
- ABS, polycarbonate
- Application
- industrial, switch, for electrical installation
- Protection level
- IK 08, IK 07, IP66
- Other characteristics
- custom, with transparent cover, double-door, lockable, with hinged cover
- Width
Min.: 80 mm
(3.1 in)Max.: 250 mm
(9.8 in)- Height
Min.: 80 mm
(3.1 in)Max.: 230 mm
(9.1 in)- Depth
Min.: 70 mm
(2.76 in)Max.: 190 mm
(7.48 in)
Description
Small size
1. BOXCO's non-metallic enclosures are not easy to break even high frequency of opening and closing because of stainless steel hinge and
draw latch.
2. It is wall mounting enclosure and makes perfect airtightness, preventing sink down when opening or closing by using suitable size of hinge
and draw latch in accordance with increasing of enclosure size.
3. Our H series switch boxes have designed to easily and simply assemble hinge and latch by customers.
Specification
IP rating : IP 66/67
IK Rating : IK 07/08
Temperature range : ABS : - 40 ~ + 70 | Polycarbonate(PC) : - 40 ~ + 110
Flammability Rating : ABS : 94-HB | Polycarbonate(PC) : 94-V-0, 5VA, HB
