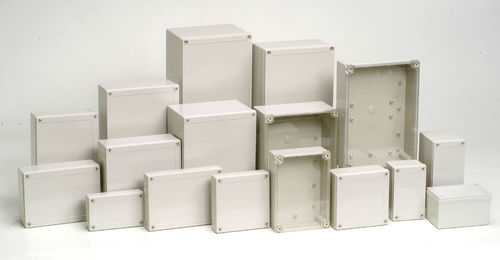

Screw cover enclosure M serieswall-mountrectangularABS
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- ABS, polycarbonate
- Application
- industrial, for keyboards
- Protection level
- IK 08, IK 07, IP66, IP67
- Other characteristics
- with transparent cover, screw cover
- Width
80 mm, 130 mm, 150 mm, 180 mm
(3.1 in, 5.1 in, 5.9 in, 7.1 in)- Height
130 mm, 180 mm, 255 mm
(5.1 in, 7.1 in, 10 in)- Depth
Min.: 35 mm
(1.38 in)Max.: 125 mm
(4.92 in)
Description
1. Considering attachment of membrane keypad, this M series enclosure is designed to make center surface of the cover slightly lower.
2. Our enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
3. Our non metallic enclosure's cover is low and base is high so that it has beautiful appearance.
Specification
IP rating : IP 66/67
IK Rating : IK 07/08
Temperature range : ABS : - 40 ~ + 70 | Polycarbonate(PC) : - 40 ~ + 110
Flammability Rating : ABS : 94-HB | Polycarbonate(PC) : 94-V-0, 5VA, HB
VIDEO
Catalogs
Leaflet
2 Pages
