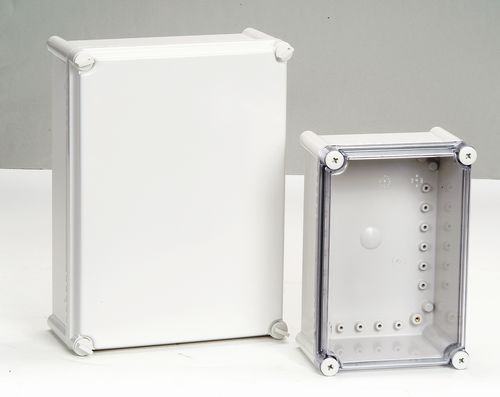

Medium-sized enclosure S serieswall-mountrectangularABS
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- ABS, polycarbonate
- Application
- electronic equipment, industrial, for electrical installation
- Protection level
- IK 08, IK 07, IP66, IP67
- Other characteristics
- with transparent cover, screw cover, medium-sized
- Width
190 mm, 280 mm, 330 mm, 380 mm
(7.5 in, 11 in, 13 in, 15 in)- Height
Min.: 190 mm
(7.5 in)Max.: 560 mm
(22 in)- Depth
100 mm, 130 mm, 180 mm
(3.94 in, 5.12 in, 7.09 in)
Description
Medium size
1. S series plastic enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
2. BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
3. S series enclosure's are suitable for mounting electrical components and available wall mounting. Our plastic enclosures are available in ABS and polycarbonate material.
Specification
IP rating : IP 66/67
IK Rating : IK 07/08
Temperature range : ABS : - 40 ~ + 70 | Polycarbonate(PC) : - 40 ~ + 110
Flammability Rating : ABS : 94-HB | Polycarbonate(PC) : 94-V-0, 5VA, HB
