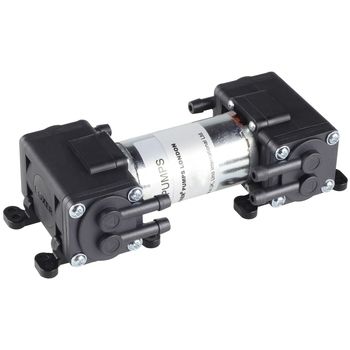

Water pump 3MQ electricdiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- flow control
- Voltage
- 24 V, 12 V
- Protection level
- robust
- Other characteristics
- compact, standard, combined, miniature, PWM
- Flow
3.4 l/min, 6.5 l/min
(0.89818 us gal/min, 1.71712 us gal/min)- Pressure
2 bar
(29.008 psi)- Power
Max.: 11 W
(0.01 hp)Min.: 7 W
(0.01 hp)- Fluid temperature
Max.: 100 °C
(212 °F)Min.: 50 °C
(122 °F)- Length
146 mm
(6 in)- Width
73.4 mm
(2.89 in)- Height
46 mm
(1.81 in)- Weight
545 g
(19.22 oz)
Description
The 3MQ series is the new compact version of the quad headed 3K pump. Highest quality con-rod and motor bearings ensure lowest power consumption and, combined with slow speed, maximum operational life. This series additionally offers a unique detachable motor construction allowing contaminated heads to be economically exchanged.
The 3MQ series is offered with a quality brushed motor.
› Robust / long life
› Detachable motor
› Singe (3K) and Dual (3MD) versions are also available
Gas versions of this series are available as 3K, 3KD and 3KQ.
Flow control is available in combination with PWM Flow Controller.
Fixing brackets are included as standard.
Return to Miniature Diaphragm Pumps for Liquid range.
