Water pump 6K electricperistalticstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Technology
- peristaltic
- Mobility
- stationary
- Domain
- industrial
- Applications
- distribution, for control, outlet
- Voltage
- 24 V
- Other characteristics
- compact, flow, combined, sensor, wall
- Flow
Max.: 0.0563 l/min
(0.01487 us gal/min)Min.: 0.0044 l/min
(0.00116 us gal/min)- Power
Max.: 53 W
(0.07 hp)Min.: 23 W
(0.03 hp)- Input diameter
Max.: 3 mm
(0.118 in)Min.: 0.5 mm
(0.02 in)
Description

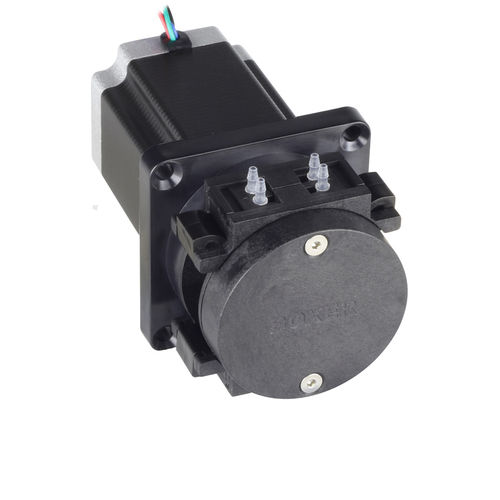

The second generation 6K series is a uniquely compact multichannel peristaltic pump range for accurate dispensing of liquids. The stepper motor drive offers the versatility of finite speed control and, combined with optional optical position sensors, roller position control.
The 6K peristaltic pump is designed for both 1.0 and 1.6 mm wall tubing. This product page details the 1.0 mm wall configurations. For 1.6 mm wall configuration ⇒ 6K for 1.6 mm wall tubing.
› Flow rates from 15 to 384 µl per revolution (per channel)
› Choice of 4, 8 or 12 channels
› Inlet / outlet above and below head to support compact design
› Suitable for 0.5, 1.0, 2.0 and 3.0 mm ID tube
› 4 and 8 roller configurations
› Supplied with motor only or choice of 3 pre-assembled stepper motor drivers
› Option rotor position / speed sensor
