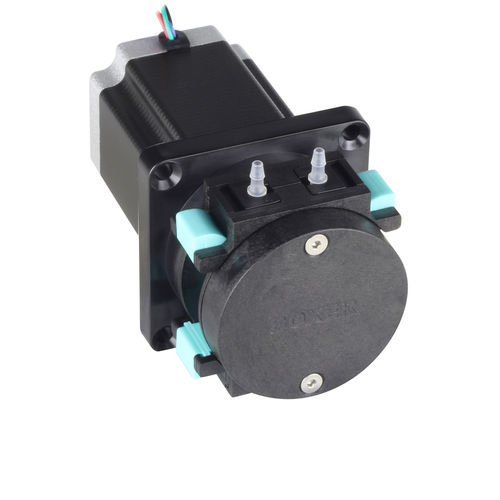

Peristaltic pump 6K watermotor-drivenstationary
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Fluid
- water
- Operation
- motor-driven
- Mobility
- stationary
- Domain
- industrial
- Applications
- distribution, for control, outlet
- Voltage
- 24 V
- Other characteristics
- compact, line, combined, sensor, wall
- Flow
0.0267 l/min, 0.0502 l/min, 0.0642 l/min
(0.00705 us gal/min, 0.01326 us gal/min, 0.01696 us gal/min)- Power
Min.: 17 W
(0.02 hp)Max.: 35 W
(0.05 hp)- Input diameter
1.6 mm, 2.4 mm, 3.2 mm
(0.063 in, 0.094 in, 0.126 in)- Length
131 mm, 151 mm, 171 mm
(5 in, 6 in, 7 in)- Width
78 mm
(3.07 in)
Description
The second generation 6K series is a uniquely compact multichannel peristaltic pump range for accurate dispensing of liquids. The stepper motor drive offers the versatility of finite speed control and, combined with optional optical position sensors, roller position control.
The 6K peristaltic pump is designed for both 1.0 and 1.6 mm wall tubing. This product page details the 1.6 mm wall configurations. For 1.0 mm wall configuration ⇒ 6K for 1.0 mm wall tubing.
› Flow rates from 89 to 489 µl per revolution (per channel)
› Choice of 2, 4 or 6 channels
› Inlet / outlet above and below head to support compact design
› Suitable for 1.6, 2.4 and 3.2 mm ID tube
› Pharm-a-line (PHI), Norprene G or ED-Plex tubing
› 4 and 8 roller configurations
› Supplied with motor only or choice of 3 pre-assembled stepper motor drivers
› Option rotor position / speed sensor
