Diaphragm pump DBMX80airfor gaselectric
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- air, for gas
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial
- Applications
- service, outlet
- Protection level
- robust
- Other characteristics
- filter, linear, integrated
- Flow
Max.: 115 l/min
(30.37979 us gal/min)Min.: 55 l/min
(14.52946 us gal/min)- Pressure
Max.: 250 mbar
(3.626 psi)Min.: 100 mbar
(1.45 psi)- Power
68 W
(0.09 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: -10 °C
(14 °F)- Length
262 mm
(10 in)- Width
215.4 mm
(8.48 in)- Height
223 mm
(8.78 in)- Weight
8.8 kg
(19.4 lb)
Description

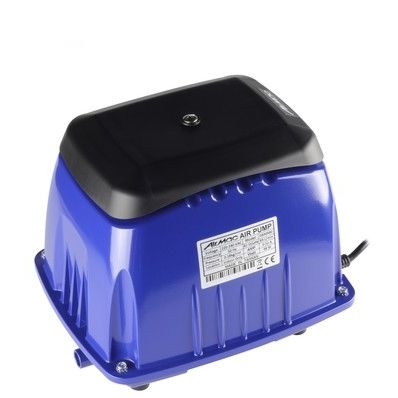

The DBMX80 is the 80 l/min linear diaphragm pump from the Airmac DBMX Series. It offers low noise with stable performance over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug.
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)
