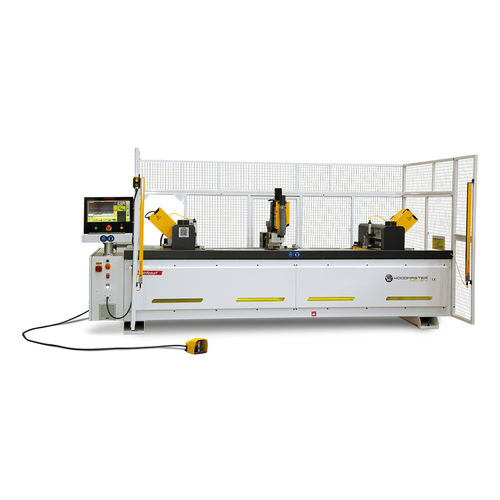

Modular machine frame Woodmaster CNC Line X

for linear application

The model of woodmaster cnc line-x is designed for continuously door frame processing. The machine has a capability for door frame milling , double side 45°-90° degree cutting and boring. Machine body has a very rigid structure that allows satbility and high precision. Displacement system, movement of x , y and z axis it’s over high quality and accuracy with linear guides. The ball bearing pad transmission by rack & pinion is used for x , y and z. Loading is manual. MACHINE BODY Monolithic frame with structure in welded and ribbed, designed to ensure maximum rigidity.Very rigid structure that allows stability and high precision. WORKING HEADS The machine is equipped with three working unit. One unit is for lock and hinges milling with a cnc router. Another two units are for double side 45°-90° degree cutting and boring. CONTROL PANEL The control panel is ergonomic and mobile and mounted on multidirectional wheels to be easily moved by the operator.This includes the cnc to handle all functions of the machine. SOFTWARE A program especially designed for the machining of doors in a simple , fast and very intuitive way , so any user can do all the themachining work possible without having to depend on complicated program or drawings. The software has a series of pre-designed macros that help the user to program the different hinges and lock jobs he wants to do. The machining of all the hinges and locks of the market and also allows the configuration of machining on door frame. COMPOSITION WORKING GROUPS - 2 BORING UNIT +2 CUTTING UNIT + 1 CNC UNIT MAX.CUTTING LENGTH CAPACITY - 2150 MM MIN.CUTTING LENGTH CAPACITY - 770 MM MAX.HIGHT CAPACITY (90°) - 60 X 270 MM
