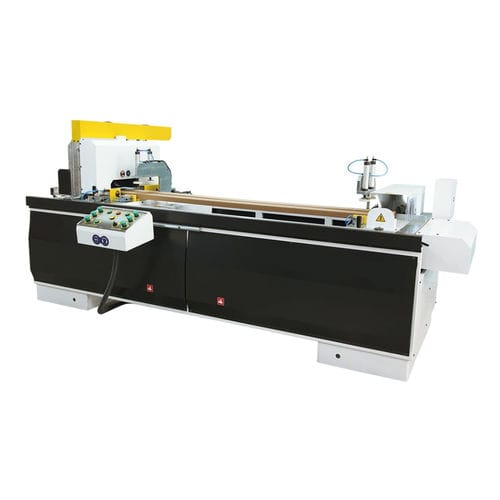

Horizontal milling machine SFR 250 Jfor doorautomaticcutting
Add to favorites
Compare this product
Characteristics
- Spindle orientation
- horizontal
- Applications
- for door
- Other characteristics
- automatic
- Associated function
- cutting
- Power
4 kW
(5.44 hp)
Description
The machine designed for door jamb double end cutting and milling for “L” place.
• The operation time is between 10-15 seconds.
• Safety clamping system is controlling by Pneumatical control.
• Capability of adjustment to max 2.2metre by manuel movement.
• Double hand controlling system
• Automatic L place milling system
Automatic cutting capability - Right / Left
Manuel adjustment for door jamb L dimension -
Door jamb cutting - Automatic
Max cutting L dimension - 120mm / Both
Max door jamb depth - 40mm
Min/max door jamb length - 600mm / 2200mm
Fixed Cutting saw - Ø 300 – Ø 250 / Ø 180 x2 piece
Movable cutting saw - Ø 350
Total power - 4 kw
Width/length/height - 1500x3300mm/150mm
