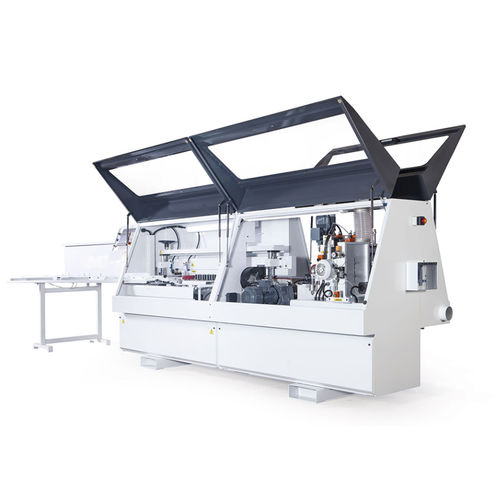

Automatic gluing machine LMD 3520 Camber

This machine, like the previous models, is used in the production of the door moldings for the door frames. Its distinctive feature is that with the help of this equipment you can produce both straight and convex (dished) moldings. Automatic Feeding Of Profiles Gluing “L” Shaped Sill Right-Left Milling Grooving Joint(juncture) Opening Chamfering Capacity: 300 – 500 Pieces Per Hour Thickness of main workpiece 8-30 mm Thickness of side workpiece 3-6 mm Width of main workpiece 65-125 mm Width of side workpiece 10-45 mm Working Speed 10-25m/dak Capacity of the glue pot 4 kg Resistance Power of glue pot 3800 watt Total Motor Power 16 kw Output for Sawdust 4 adet Total Electric Power 18 kw Air pressure 6 bar Mains Voltage 380 V, 50-60 Hz Current Intensity 78 A Working Dimensions (L/W/H) 6500 x 1200 x 1400 mm Shipping Dimensions (L/W/H) 4500 x 1200 x 1700 mm Weight 1820 Kg
