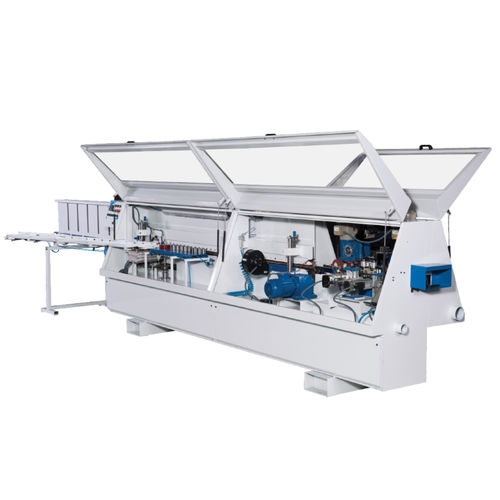

Automatic gluing machine LMS 5000

Machine for mass Gguing L-shaped jamb (sill, architrave) is used in production the door, door casing and door frame. This machine is intended to bond two MDF panels certain size (certain width and thickness) at 90 ˚ with subsequent formation of a jamb (sill) in the form L-profile. Also, the machine performs all the operations necessary to make the final appearance of the billet. It is right and left milling, chamfering, grooving, and opening of the juncture. All these operations are performed serially and in automatic mode. Hourly Capacity Of The Machine: 600-700 Pieces. Machine For Mass Gluing L-shaped Jamb Is Ideal For Those Who Want To Get The Best Results With The Least Expenses! Width of side workpiece 10-280 mm Working Speed 16m/min Capacity of the glue pot 3 kg Resistance Power of glue pot 3650 watt Total Motor Power 8,7 kw Width of main workpiece 60-120 mm Thickness of side workpiece 3-6 mm Thickness of main workpiece 8-30 mm Output for Sawdust 2 pcs Total Electric Power 11,5 kw Air pressure 6 bar Mains Voltage 380 V, 50-60 Hz Current Intensity 45 A Working Dimensions (L/W/H) 5500 x 1400 x 1200 mm Shipping Dimensions (L/W/H) 3500 x 1200 x 1700 mm Weight 950 Kg
