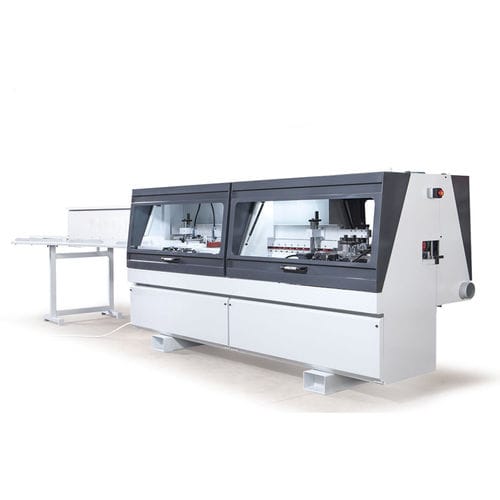

Automatic gluing machine LME 2500 Eco

Machine for gluing L-shaped jamb is using in production the door, door casing and door frame. This machine is intended to bond two MDF panels certain size (certain width and thickness)at 90 ˚ with subsequent formation of a jamb (sill) in the form “L”-profile. Also, the machine performs all the operations necessary to make the final appearance of the billet. All processes on the machine are fully automated. Capacity: 250 – 300 Pieces Per Hour Automatic Feeding Of Profiles Gluing “L” Shaped Sill Right-Left Milling Grooving Joint (juncture) Opening Chamfering Thickness of main workpiece 8-30 mm Thickness of side workpiece 3-6 mm Width of main workpiece 60-120 mm Width of side workpiece 10-80 mm Working Speed 16 m/min Tutkal Kazanı Kapasitesi 3 kg Resistance Power of glue pot 3650 watt Total Motor Power 8,67 kw Output for Sawdust 2 piece / Ø115 mm – Ø80 mm Total Electric Power 11,5 kw Air pressure 6 bar Mains Voltage 380 V, 50-60 Hz Current Intensity 45 A Working Dimensions (L/W/H) 5500 x 1400 x 1200 mm Shipping Dimensions (L/W/H) 3500 x 1200 x 1700 mm Weight ≈ 950 Kg
