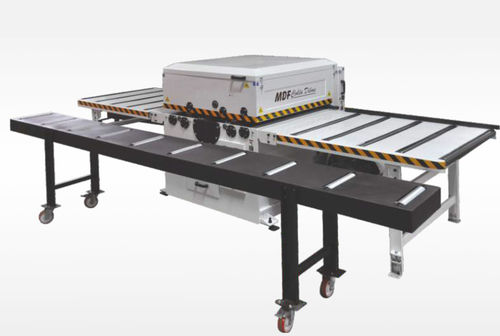

MDF Multiple Rip Saw Machine is using in the to slice the MDF boards whose surfaces are smoothed to the desired size.
Since the machine body is an open case, it enables you to pass the plates of the desired width easily.
Cutting height is automatic, it does not require any thickness adjustment.
Distance between saws is manually adjusted with aluminum flake.
•Speed cutting
•Automatic pushing.
•Input-output and side conveyor.
•Open slot on one side.
MDF Cutting Range 930 mm
Max Cutting Thickness 50 mm
Minimum MDF Cutting Length 650 mm
Feed Speed Adjustment Range 5-20 Mt/Dk
Feed Speed Adjustment Range 5-20 Mt/Dk
Thrust Motor 0,75 Kw 1410 Devir /Dk. (RPM)
Main Spinde Motor 22 Kw – 380 V
Main Spinde Engine Power 30 HP
Saw Diameter MAX Ø 250
Saw Shaft Diameter 70 mm
Saw Speed 3500 Devir/Dk (RPM)
Cutting Noise 15
Working Height 900 mm
Operating Noise 80dB
System Air Pressure (W / D / Y) 8 Bar
Working Dimensions (L/W/H) 1360 x 1500 x 1400 mm
Weight 1480 Kg
