Pneumatic manipulator Vacful Bagvacuumbagpositioning
Add to favorites
Compare this product
Characteristics
- Drive type
- pneumatic
- Gripping device
- vacuum
- Applications
- positioning, loading, for materials handling, unloading, bag
- Configuration
- jib-crane
- Other characteristics
- ergonomic, pick-and-place, with swingarm, rope, twohand control
- Domain
- for the packaging industry, for the food industry, for the chemical industry, for the pharmaceutical industry
- Carrying capacity
50 kg
(110.2 lb)Min.: 10 kg
(22 lb)Max.: 50 kg
(110.2 lb)- Working radius
2,500 mm
(98 in)Min.: 2,500 mm
(98 in)Max.: 2,500 mm
(98 in)- Maximale stroke
1,600 mm
(63 in)Min.: 200 mm
(8 in)Max.: 1,600 mm
(63 in)- Pressure
7 MPa
Min.: 6 MPa
Max.: 8 MPa
- Rotation
Min.: 0 °
Max.: 330 °
Description

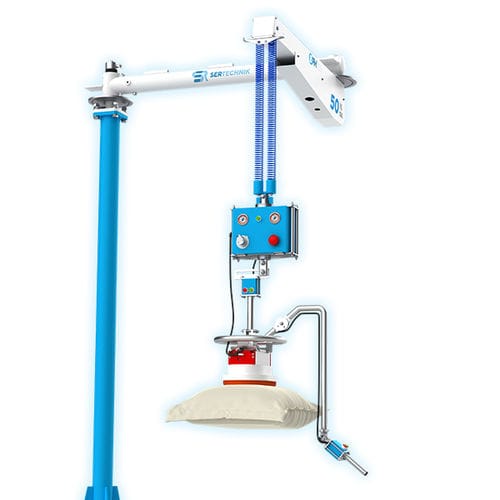

The Vacful is a rope-type manipulator with a vacuum system. It lifts bags
and boxes with a special suction cup. With its double-arm
structure, the operator can easily handle light loads in any
direction.
The Vacful is perfect for ergonomic and safe movements.
The operator can carry the load quickly and safely. It can be
optionally mounted on a column, ceiling, overhead monorail
system, or other overhead structures.
It works with dry, filtered (40 μm), and oil-free compressed air.
