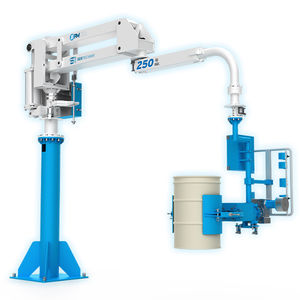

Pneumatic manipulator Drumful S
with gripping toolfor drumsbarrel

Pneumatic manipulator - Drumful S - BPM by Sertechnik - with gripping tool / for drums / barrel
Pneumatic manipulator - Drumful S - BPM by Sertechnik - with gripping tool / for drums / barrel
Pneumatic manipulator - Drumful S - BPM by Sertechnik - with gripping tool / for drums / barrel - image - 2
Pneumatic manipulator - Drumful S - BPM by Sertechnik - with gripping tool / for drums / barrel - image - 3
Pneumatic manipulator - Drumful S - BPM by Sertechnik - with gripping tool / for drums / barrel - image - 4
Pneumatic manipulator - Drumful S - BPM by Sertechnik - with gripping tool / for drums / barrel - image - 5
Pneumatic manipulator - Drumful S - BPM by Sertechnik - with gripping tool / for drums / barrel - image - 6
Pneumatic manipulator - Drumful S - BPM by Sertechnik - with gripping tool / for drums / barrel - image - 7
Add to favorites
Compare this product


Characteristics

Drive type
pneumatic
Gripping device
with gripping tool
Applications
for lifting, positioning, loading, for gripping, for drums, unloading, for emptying, barrel, empty drum
Configuration
pillar
Other characteristics
ergonomic, rotary, pick-and-place, articulated, rotation 0°-180°, twohand control, with rotary head
Domain
industrial, for the food industry, chemistry, for the construction industry, for the pharmaceutical industry
Carrying capacity

Min.: 10 kg
(22 lb)

Max.: 100 kg
(220.5 lb)

100 kg
(220.5 lb)

Working radius

Min.: 2,000 mm
(79 in)

Max.: 3,000 mm
(118 in)

3,000 mm
(118 in)

Maximale stroke

Min.: 200 mm
(8 in)

Max.: 2,000 mm
(79 in)

2,000 mm
(79 in)

Pressure

Min.: 7 bar
(101.5 psi)

Max.: 8 bar
(116 psi)

7 bar
(101.5 psi)

Rotation

Min.: 0 °

Max.: 360 °

360 °

Description

The Drumful is an articulated arm manipulator with a pneumatic system. Thanks to a pneumatic motor, it can rotate and empty the drums by 180°. With its double arm structure, the operator can easily handle the drums in any direction. The Drumful is perfect for ergonomic and safe movements and efficient work. The operator can carry the load quickly and safely. It can be mounted on a column, ceiling or overhead structure or on an overhead rail system. It works with dry, filtered (40 μm) and oil-free compressed air.
