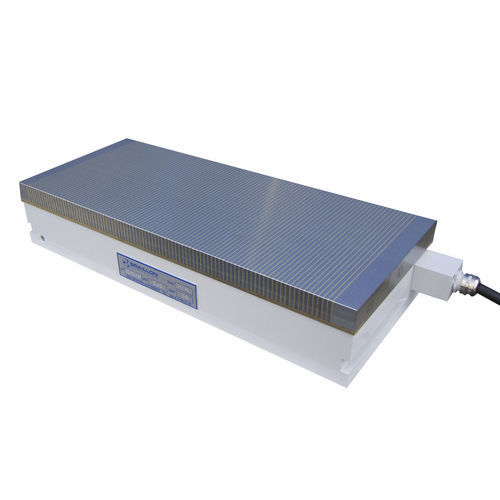

Fine pole electro-permanent magnetic chuck 10.25

rectangularfor grindingfor EDM

Waterproof constructionLow magnetic field . Multicoil electro-permanent system . Parallel small pole pitch throughout the whole width of the chuck . Uniform and strong magnetic field over the whole surface Included with purchase: - 3, 6 or 10 meter long cable (length to be chosen) on the short side - Long and short side end stops - Clamps Use :GrindingEDMmetrology Nominal force :110 N/cm²Pole pitch :5 mm1 mm of brass4 mm of steelAdmissible wear of top plate :8 mmMagnetic field height :5 mmVoltage :340 VDC400 VAC Options :- Other sizes on request - Electromagnetic execution - Through holes to fix the chuck on the machine table - Cable connection on the long side - Compressed air holes
