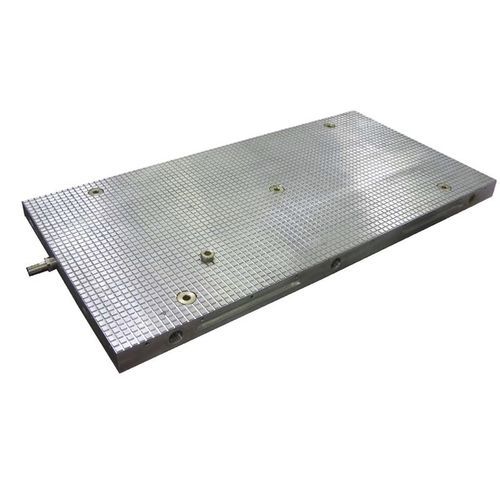

Grid vacuum chuck 30.01
for grindingfor millingfor metrology

Grid vacuum chuck - 30.01 - Braillon Magnetics - for grinding / for milling / for metrology
Grid vacuum chuck - 30.01 - Braillon Magnetics - for grinding / for milling / for metrology
Add to favorites
Compare this product
Go to the Braillon Magnetics website for more information

Characteristics

Specifications
grid
Applications
for grinding, for milling, for engraving, for metrology, for machining, for polishing

Description

Heavy duty construction . Grid type vacuum chuck to be used on machine-tool table . 2 different groove pitches: VRS12AL: 12.5 mm pitch, execution in aluminium VRS25AL: 25 mm pitch, execution in aluminium . The required complementary equipment to be ordered, see articles: 30.11 / 30.12 /30.14 / 30.18 / 30.15 . Corresponding vacuum pump: 30.10 / 30/20 Included with purchase: - Air hose connector - End stops Use :GrindingEDMMillingmetrologyMachiningPlanningEngravingPolishing Parallelism :0.02/100 mmFlatness :0.02/100 mm Options :- Another position of air connection - Multiple independent zones - Special execution, palletizing - With steel base plate for use on magnetic chucks
