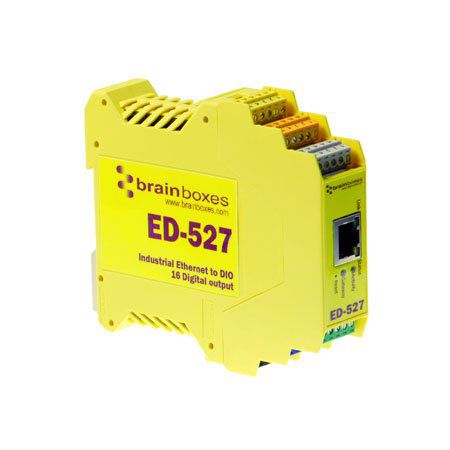

Digital I O module ED-527

RS485TTLModbus

16 Digital Digital Outputs and a RS485 Gateway Port Control any output from TTL to high voltage high current industrial devices Factory floor process control and automation, Integrated DIN rail mount Supports simple ASCII or industry standard Modbus TCP -30°C to +80°C Temperature range Software APIs for Visual Basic, C# and more thernet to DIO device: 16 non-isolated digital output channels. Outputs each group of 4 lines has its own common rail. Powerful ARM 80 MHz, 32 Bit CPU. The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
