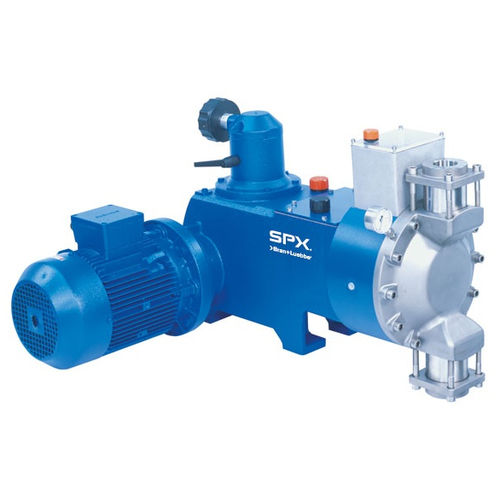

Diaphragm pump NOVADOS H3

for chemicalselectricstationary

Nearly all gear sizes in the NOVADOS series can be combined for process and metering pumps to achieve the required flow rate and pressure parameters. Features The NOVADOS Family comprises leak-free diaphragm pumps as well as plunger pumps. Nearly all gear sizes in the NOVADOS series can be combined to achieve the required flow rate and pressure parameters. Materials of construction of liquid-wetted parts Housings of stainless steel 1.4571 or 1.4462 or plastic PVC or PP Diaphragms of PTFE or stainless steel 1.4310 Plungers of stainless steel or ceramic Options: materials such as Super Duplex, Hastelloy, Titanium and other materials Pump gear design Worm gear with different reduction ratios Splash lubrication Stroke length adjustment via eccentric (Z-shape) crankshaft Flow rate control Manual, electric, pneumatic or speed variation Drive Electric motor with fixed or variable speed Other drives on request Benefits Hermetically sealed pump design Optimal capacity adaptation to widely varying production processes Variable stroke length for each pump allows independent flow rate adjustment of each pump component Variable speed drive allows flow rate variations while maintaining Automation allows higher production efficiency to be achieved Existing installations can be altered or expanded with extra pumps or automatic control
