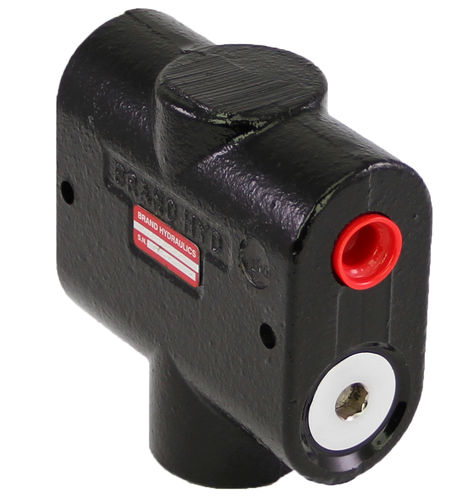

Hydraulic flow divider B series

fixed-prioritycast iron

FEATURES:  PRECISION GROUND HEAT TREATED SPOOL that assures long life.  PRESSURE COMPENSATION for both outlet ports.  EVERY B IS TESTED for flow ratio and pressure compensation.  DIVIDES INLET FLOW INTO TWO FLOWS of equal flow or a ratio up to 95:5.  OPTIONAL FREE REVERSE FLOW (B100 & B100AB) allows fluid to move from the outlet ports to the inlet port.  OPTIONAL ADJUSTABLE BYPASS (B100AB) allows a cylinder to finish its stroke. SPECIFICATIONS:  Rated for 3000 psi (207 bar).  See “Port Size & Inlet Flow” on next page for flow capacity.  30-Micron filtration recommended.  Weight -B50 & B100 = 5 lbs. (2.3 kg). -B100AB = 7-1/2 lbs. (3.4 kg).
