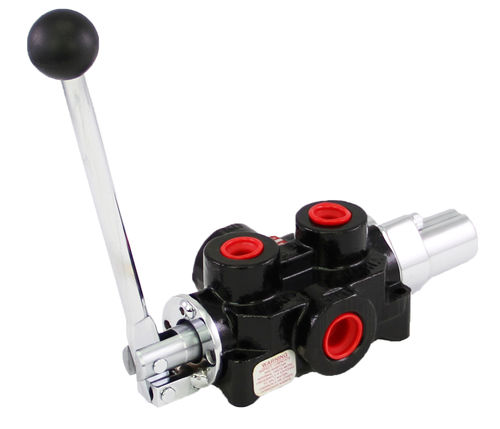

Spool hydraulic directional control valve LS serieslever-operated4-waycompact
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- lever-operated
- Ports/positions
- 4-way
- Other characteristics
- compact
- Operating pressure
3,000 bar
(43,511.32 psi)- Flow rate
Max.: 18 us gal/min
(68.1 l/min)Min.: 0 us gal/min
(0 l/min)
Description
FEATURES:
STANDARD SINGLE HYDRAULIC KICK OUT with non-adjustable kick-out.
OPTIONAL SINGLE HYDRAULIC KICK OUT with adjustable kick-out.
OPTIONAL DOUBLE HYDRAULIC KICK OUT is not recommended for log splitters.
SMALL AND COMPACT to fit your design requirements.
FINE POSITIVE METERING in either direction with the manually adjustable handle.
PRECISION GROUND IOSSO PLATED SPOOL that assures long life.
SPECIFICATIONS:
Rated 0-18 gpm (0-68.1 lpm).
Rated for 3000 psi (207 bar).
Weighs 5-1/2 lbs. (2.5 kg).
30 – Micron filtration recommended.
Standard port sizes.
- Inlet/Outlet
