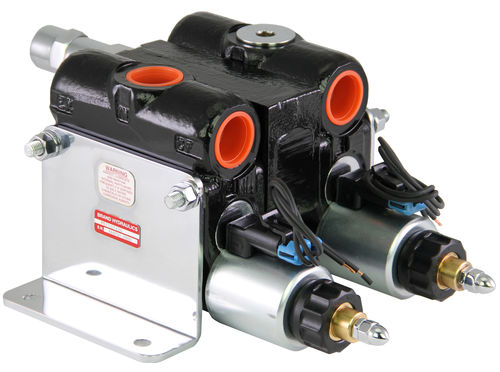

Direct-operated solenoid valve SEFC series

hydraulicmodular

FEATURES:  PARALLEL OR SERIES flow paths are possible.  SPECIAL MODIFICATIONS are easily made to fit your particular application.  O’RING PORTS to eliminate leakage.  OPTIONAL RELIEF SECTION provides protection of circuit. SPECIFICATIONS:  3000 psi (207 bar) rating.  Standard port size #12SAE (1-1/16-12).  10-Micron filtration recommended.  Pulse frequency (90 to 115 hz).  Coil -12 VDC standard (24 VDC). -9.6 ohms (48 ohms). -15 watts (15 watts). -1.0 amp max. (0.5 amp max.). MATERIALS:  Hardened Alloy Steel Ball  Chrome Alloy Steel Ball  Ductile Cast Iron Body  Heat Treated Steel Spools  Buna N O’Rings
