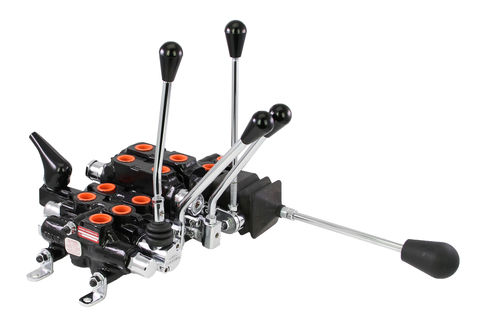

Spool hydraulic directional control valve 34 series
manual3-waymodular

spool hydraulic directional control valve
spool hydraulic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
manual
Ports/positions
3-way
Other characteristics
modular
Operating pressure

Max.: 3,500 psi

Min.: 400 psi

Flow rate

12 us gal/min
(45 l/min)

Description

FEATURES: - INDIVIDUAL LOAD CHECK built into each section that prevents the load from dropping when the spool is shifted. - PRECISION GROUND CHROME PLATED SPOOL that assures long life. - DIAMOND HONED SPOOL BORE provides consistent spool fit with low leakage. - METERING NOTCHES give smooth control of load. - ADJUSTABLE HANDLES position handle in any location from 90° up to 90° down. - SPECIAL MODIFICATIONS are easily made to fit your particular application. - O’RING PORTS to eliminate leakage. - PARALLEL OR SERIES flow paths are possible. - ALL SECTIONS & ASSEMBLIES ARE 100% TESTED includes both internal & external leakage tests & flow tests. - POWER BEYOND CAPABILITY to fit your multi-valve circuits. SPECIFICATIONS: - 12 gpm Nominal Capacity - 3500 psi (241 bar). - 400 psi (27 bar) max tank pressure. - 12 sections max (consult factory for more). - 10 Micron Filtration Recommended. - Assembly Torque = 85 inch-lbs. - Weight -Inlet/outlet = 6 lbs. (2.7 kg). * Low spool section = 4 lbs. (1.8 kg). * High spool section = 6 lbs. (2.7 kg). - Port Sizes * Inlet/outlet #10SAE (7/8 - 14). * Work Ports #8SAE (3/4 - 16).
