- BRAND HYDRAULICS

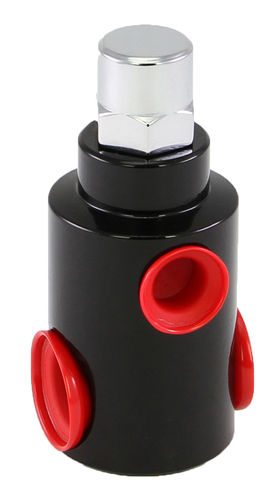

Relief valve RL series
Add to favorites
Compare this product
Characteristics
- Controlled pressure
Min.: 150 psi
Max.: 3,000 psi
- Flow rate
Min.: 0 l/min
(0 us gal/min)Max.: 113.4 l/min
(29.96 us gal/min)
Description
FEATURES:
- OPTIONAL HIGH LIFT BALL SPRING RELIEF reduces noise, heat and chatter.
- OPTIONAL O’RING PORTS to eliminate leakage.
- STEEL BALL will not jam, lock or seize and will always open.
- CHROME ALLOY STEEL BALL is a grade No. 25 ball.
- HARDENED ALLOY STEEL SEAT to reduce wear.
- SHOT PEENED STRESS RELEIVED steel spring to increase life and consistent results.
SPECIFICATIONS:
- Pressure rating 3000 psi (207 bar).
- Pressure setting 150-3000 psi (10-207 bar).
- See creating a model code for flow capacity.
- Weighs 2 1/4 lbs (1.0 kg).
MATERIALS:
- Zinc Plated Steel Body
- Chrome Alloy Steel Ball
- Hardened Alloy Steel Seat
- Aluminum Alloy Body
