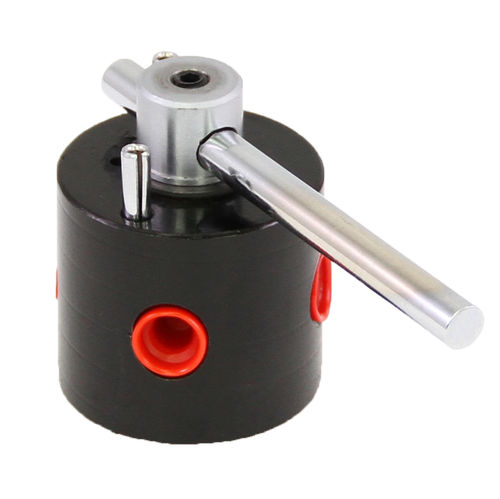

Spool hydraulic directional control valve HPV4 serieslever-operated4-waycompact
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- lever-operated
- Ports/positions
- 4-way
- Other characteristics
- compact
- Operating pressure
6,000 psi
- Flow rate
Min.: 0 us gal/min
(0 l/min)Max.: 5 us gal/min
(18.9 l/min)
Description
SMALL AND COMPACT to fit your design requirements.
CROSS HOLES IN SPOOL reduce torque required to rotate the spool.
PRECISION GROUND CHROME PLATED SPOOL that assures long life.
OPTIONAL # 4 SAE PORTING for a better seal between the body and the fitting.
OPTIONAL T4 SPOOL allows customer to send oil from P to T in the neutral position.
OPTIONAL THREE-POSITION DETENT to hold the spool in either active position or neutral.
SPECIFICATIONS:
Rated 0-5 gpm (0-19 lpm).
Rated for 6000 psi (414 bar).
Weighs 1.25 lbs. (0.6 kg).
Standard port size 1/4" NPT all.
30 -- Micron filtration recommended.
