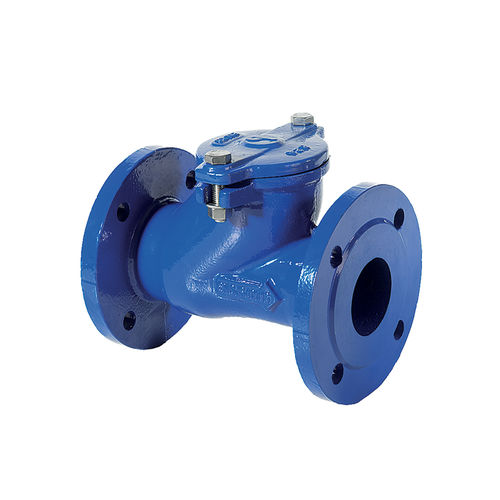

Ball check valve 07 threadedflangefor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Body
- threaded, flange
- Applications
- for water, for viscous fluids
- Material
- cast iron
- Other characteristics
- horizontal
- DN
Min.: 50 mm
(1.969 in)Max.: 500 mm
(19.685 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 70 °C
(158 °F)
Description
The valves in series 07 are ball check valves made of ductile iron, and are manufactured in accordance with the most severe product norms, and in conformity with the quality requirements of EN ISO 9001.
They are available in a flanged version, from DN50 to DN250, and in a threaded version, from DN25 to DN80.
They are suitable for waste water, industrial applications, agricultural purposes, for viscous e dense liquids.
(Please ensure the choice of the corresponding item) YES: for installing in a vertical (recommended) and horizontal position.
Full bore, low head losses, self-cleaning.
Removable bonnet for cleaning or changing the ball without removing the valve from the pipeline.
NO: for steam and gas.
Accessories
Spare ball
Spare seals
