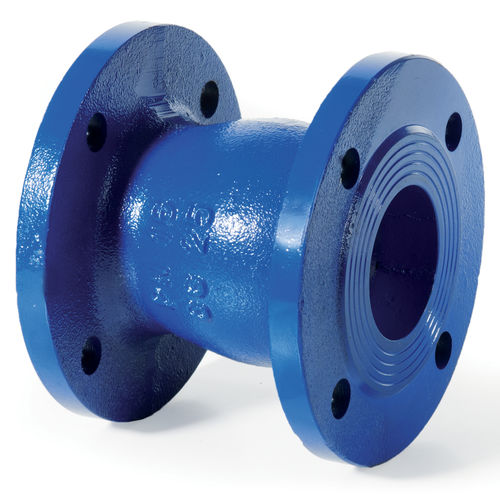

Swing check valve M16flangefor watercast iron
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Body
- flange
- Applications
- for water
- Material
- cast iron
- Other characteristics
- Venturi
- DN
Max.: 600 mm
(23.622 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 100 bar
(1,450.4 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)
Description
The valves in series M16 are “Venturi” type, flanged PN 10/16, cast iron check valves.
They are available on request in PN 25/40/64/100 versions.
YES: for water distribution and treatment, and industrial applications.
They are suitable for installation in a vertical, horizontal and inclined position.
The hydro-dynamic profile produces low head losses.
NO: for steam and gas.
