Disc check valve 05
for waterthreadedfor compressed air

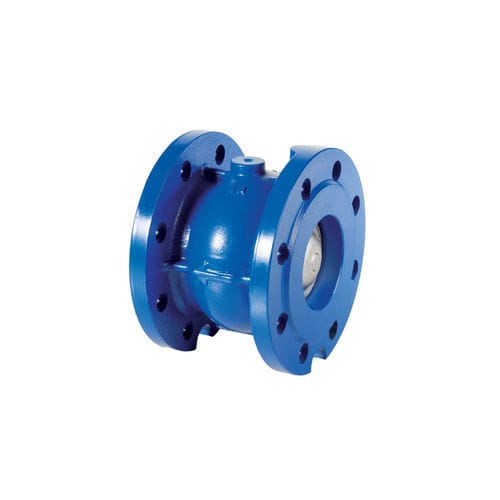

Disc check valve - 05 - Brandoni - for water / threaded / for compressed air
Disc check valve - 05 - Brandoni - for water / threaded / for compressed air
Disc check valve - 05 - Brandoni - for water / threaded / for compressed air - image - 2
Disc check valve - 05 - Brandoni - for water / threaded / for compressed air - image - 3
Disc check valve - 05 - Brandoni - for water / threaded / for compressed air - image - 4
Disc check valve - 05 - Brandoni - for water / threaded / for compressed air - image - 5
Disc check valve - 05 - Brandoni - for water / threaded / for compressed air - image - 6
Disc check valve - 05 - Brandoni - for water / threaded / for compressed air - image - 7
Disc check valve - 05 - Brandoni - for water / threaded / for compressed air - image - 8
Disc check valve - 05 - Brandoni - for water / threaded / for compressed air - image - 9
Add to favorites
Compare this product


Characteristics

Type
disc
Fluid
for water
Body
threaded
Applications
for compressed air
Material
cast iron
Other characteristics
spring, in-line, horizontal
DN

Max.: 250 mm
(9.843 in)

Min.: 50 mm
(1.969 in)

Pressure

10 bar, 16 bar
(145 psi, 232.1 psi)

Temperature

Max.: 150 °C
(302 °F)

Min.: -10 °C
(14 °F)

Description

The valves in Series 05 are check valves with cast iron bodies, that are manufactured in accordance with the most severe product norms, and in conformity with the quality requirements of EN ISO 9001. They are available in flanged versions, from DN 50 to DN 250, and in threaded versions, from DN 50 to DN 100. The valves are suitable for installation in heating and conditioning plants (HVAC), for water treatment and distribution, pump stations, agricultural applications, industrial applications, fire fighting applications, for compressed air, oils and hydrocarbons. (Please ensure the choice of the corresponding item) YES: for in-line installation (horizontal or vertical position) and as foot valves. The shape of the body and shutter minimizes turbulence and head loss. NO: for steam. Accessories Plugs for drain Mini-valves for drain Filter baskets (see Filtration) Special version Double check group
