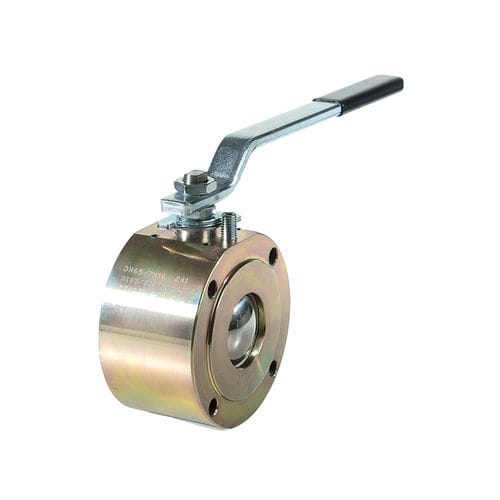

Floating ball valve 01.411 series
manualleverpneumatically-operated

Floating ball valve - 01.411 series - Brandoni - manual / lever / pneumatically-operated
Floating ball valve - 01.411 series - Brandoni - manual / lever / pneumatically-operated
Floating ball valve - 01.411 series - Brandoni - manual / lever / pneumatically-operated - image - 2
Floating ball valve - 01.411 series - Brandoni - manual / lever / pneumatically-operated - image - 3
Floating ball valve - 01.411 series - Brandoni - manual / lever / pneumatically-operated - image - 4
Add to favorites
Compare this product


Characteristics

Type
floating ball
Operation
manual, lever, pneumatically-operated, electric
Function
shut-off
Media
for oil, for hydrocarbons
Body
flange, wafer, straight, carbon steel
Applications
industrial, chemical, for heating, HVAC
Other characteristics
ISO
DN

Max.: 150 mm
(5.906 in)

Min.: 15 mm
(0.591 in)

Pressure

16 bar, 40 bar
(232.1 psi, 580.2 psi)

Temperature

Max.: 150 °C
(302 °F)

Min.: -25 °C
(-13 °F)

Description

Shut-off wafer ball valves with the body in carbon steel A 105, with a floating ball, manufactured in accordance with the most severe product standards and the quality management of ISO 9001. They are available in the following versions: PN 16 and PN 40. Suitable for chemical and industrial plants, for heating and conditioning (HVAC), district heating, agricultural applications, oils and hydrocarbons. (Please ensure the choice of the corresponding item) YES: for installation in line and end of line, for services with frequent actuation, suitable for installation of manual, electric and pneumatic servo commands. Full and straight bore reducing turbulences and minimizing head loss. NO: for steam, for choking and regulation of the flow. Actuators Double acting and single acting pneumatic actuators Electric actuators Gear box
