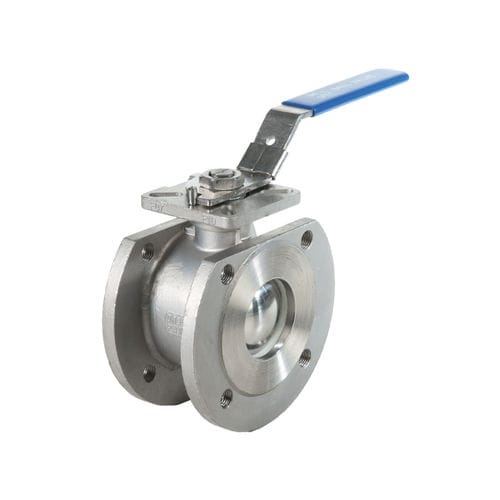

Floating ball valve 01.622 seriesmanualleverpneumatically-operated
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- manual, lever, pneumatically-operated, electrically-actuated
- Body
- flange, wafer, stainless steel
- Applications
- industrial, chemical, for heating, HVAC
- Other characteristics
- ISO
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar, 40 bar
(232.1 psi, 580.2 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -25 °C
(-13 °F)
Description
The series consists of shut-off wafer ball valves with the body in stainless steel CF8-M with a floating ball, manufactured in accordance with the most severe product standards and the quality management of ISO 9001.
They are available in the following versions: 01.622 PN 40 > up to DN 50 01.622 PN 16 > from DN 65 to DN 100
Suitable for chemical and industrial plants, for heating and conditioning (HVAC), district heating, agricultural applications, oils and hydrocarbons.
(Please ensure the choice of the corresponding item) YES: for installation in line and end of line (see warning fig.1), for services with frequent actuation, suitable for installation of manual, electric and pneumatic servo commands.
Full and straight bore reducing turbulences and minimizing head loss.
NO: for steam, for choking and regulation of the flow.
Actuators
Double acting and single acting pneumatic actuators
Electric actuators
Gear box
